Optical USB Fingerprint Reader GNU/Linux Edition (TPE-F4500)
The TPE-F4500 fingerprint reader is a USB peripheral perfect for individual desktop users, as well as multiple users in shared environments. Where most fingerprint readers on the market lack support for GNU/Linux or offer abysmal results the TPE-F4500 fingerprint reader achieves reliable results through the use of a larger sensor and free software support. The fingerprint reader works with the primary free software fprint project, the GNOME desktop environment, and the KDE desktop environment.
To use, simply open settings and go to user settings to enroll a fingerprint for use at login and lock screen. For superior user feedback, a red “flash” indicates that a fingerprint image has been captured. Unlike with other readers there is no question as to whether or not the fingerprint reader is working or not.

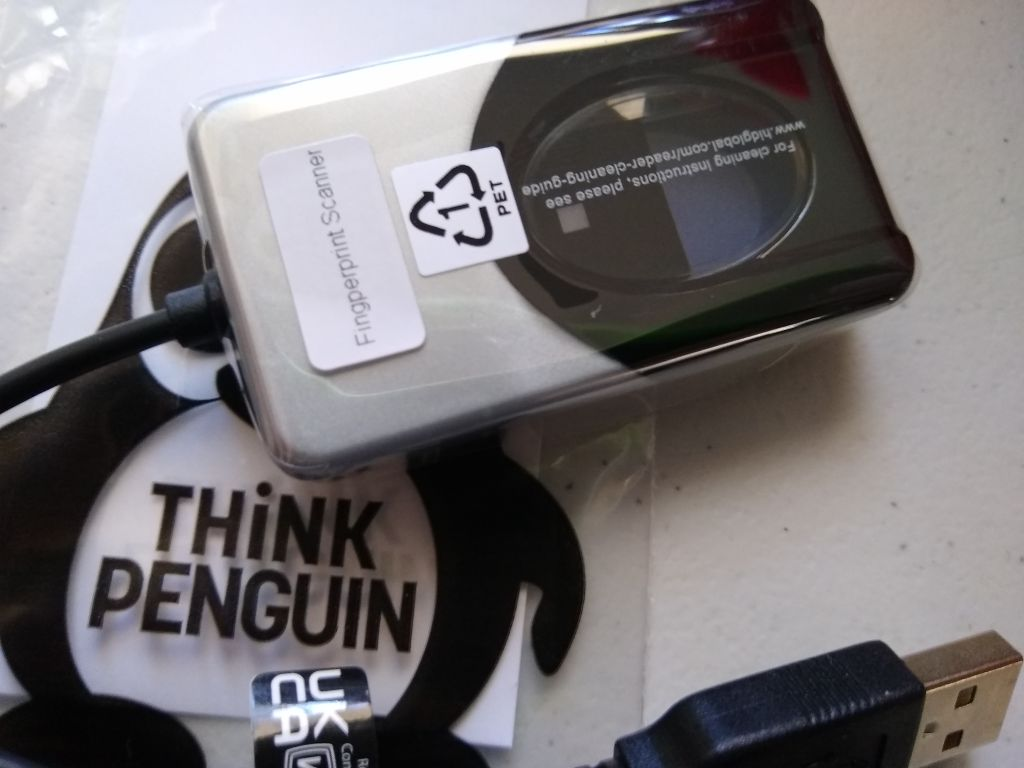

Looking for a better up close shot? We got that!
- Supports Cinnamon, GNOME and the KDE Plasma desktop
- Works with the standard free software package for GNU/Linux fprint
- Compatible with other applications such as sudo and anything else that works with fprint
- Large sensor for consistent and reliable results every time you go to login or unlock the system
- Does not rely on any OS-loaded binary blobs or proprietary drivers-no risk of losing support
|
Fast shipping: Most customers will receive this item within 1-5 business days when selecting DHL shipping or when selecting our USPS shipping option for those within the US. Most others in populated regions will generally get it within 6-10 business days.
(* large quantities may take longer to deliver)
|
|
Category
|
Specification
|
|
Technology
|
Optical fingerprint scanning
|
|
Output image resolution / bit depth
|
512 dpi / 8-bit grayscale (256 gray levels)
|
|
Scan Capture Area
|
14.6 mm (nom. width); 18.1 mm (nom. length)
|
|
Image output format
|
ISO 19794-4:2005; ANSI/INCITS 381-2004
Uncompressed Image Mode (raw)
WSQ Compressed
|
|
USB Data Encryption
|
32-bit polynomial encryption with rolling key
|
|
Temperature, Operating
|
0° +40° C
|
|
Humidity, Operating |
20% to 80% R.H., non-condensing
|
|
Interface
|
USB 2.0 Full-speed High Power Device
USB A, USB-C connector available, 5.5ft cable
|
|
Overall dimensions
|
Overall dimensions
|
|
Overall dimensions
|
Overall dimensions
|
|
Power Supply Voltage
|
5.0 VDC ±5% supplied by USB
|
|
Supply Current - Suspend Mode
|
< 0.5 mA (Maximum)
|
|
Supply Current - Scanning
|
Supply Current - ScanningSupply Current - Scanning
|
|
Device Certifications
|
FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL, Reach, WEEE, RoHS
|
|
Compatible With
|
Compatible with MS Windows 7/8/10/Vista, XP Professional, 2000 and Windows Server 2000, 2003, 2008
(please note we do not provide end-user support for MS Windows)
|
Have questions?
E-mail support or call us at: 1-888-39-THINK (84465)
|
|
Partial List Of Supported Releases:
Linux Mint 22.2Ubuntu 22.04, 22.10, 23.04, 23.10, 24.04, 24.10, 25.04, 25.10Fedora 34, 35, 36, 37, 38, 39, 40, 41, 42, 43Red Hat Enterprise Linux (RHEL) 10 Series 10.0Red Hat Enterprise Linux (RHEL) 9 Series 9.0, 9.1, 9.2, 9.3, 9.4, 9.5, 9.6Rocky Linux 10 Series 10.0Rocky Linux 9 Series 9.0, 9.1, 9.2, 9.3, 9.4, 9.5, 9.6AlmaLinux 10 Series 10.0AlmaLinux 9 Series 9.0, 9.1, 9.2, 9.3, 9.4, 9.5, 9.6Most distributions using GNOME, KDE, or Cinnamon as their desktop environment are supported out of the box. For questions about a specific distribution or release not listed above please contact support to request additional information.
|
